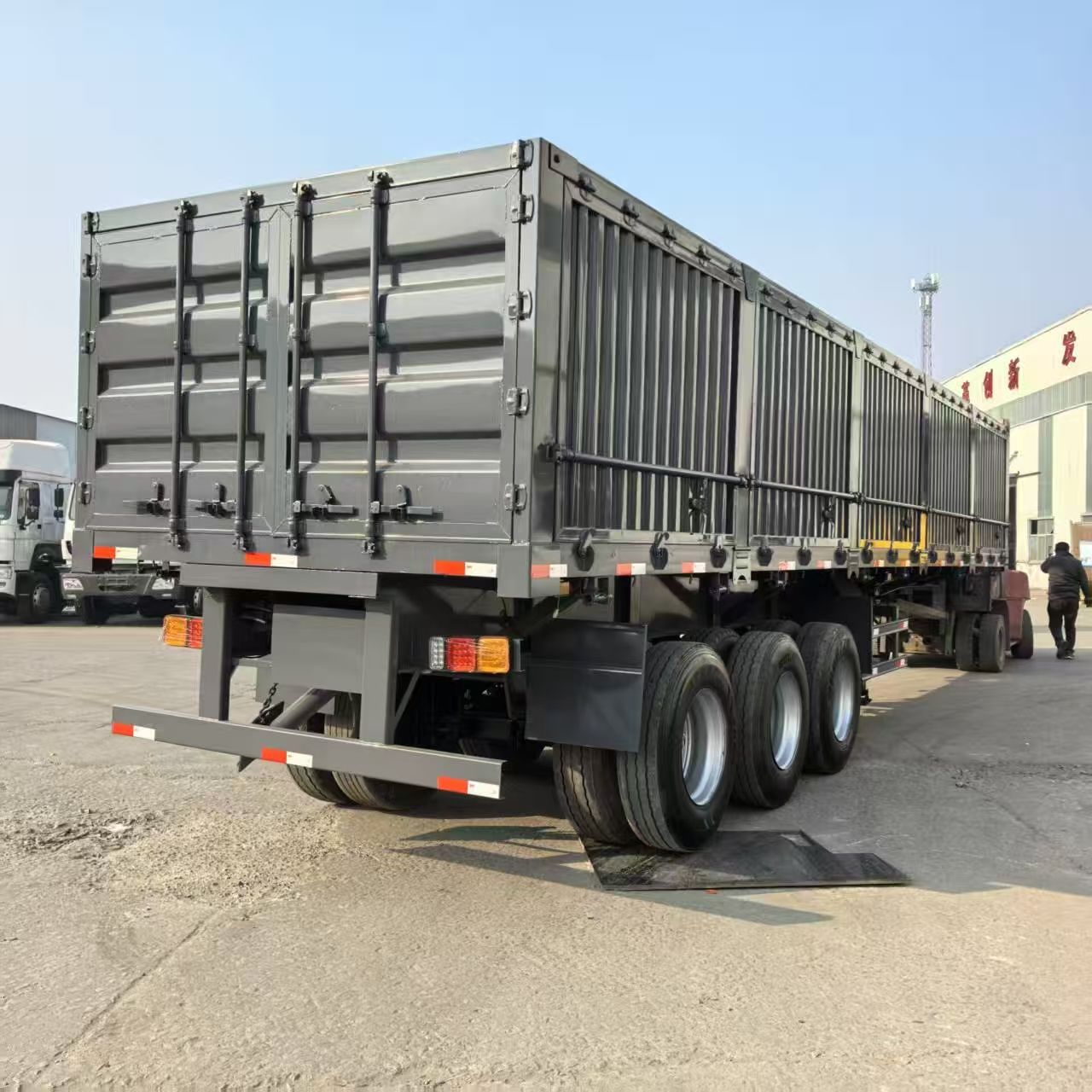

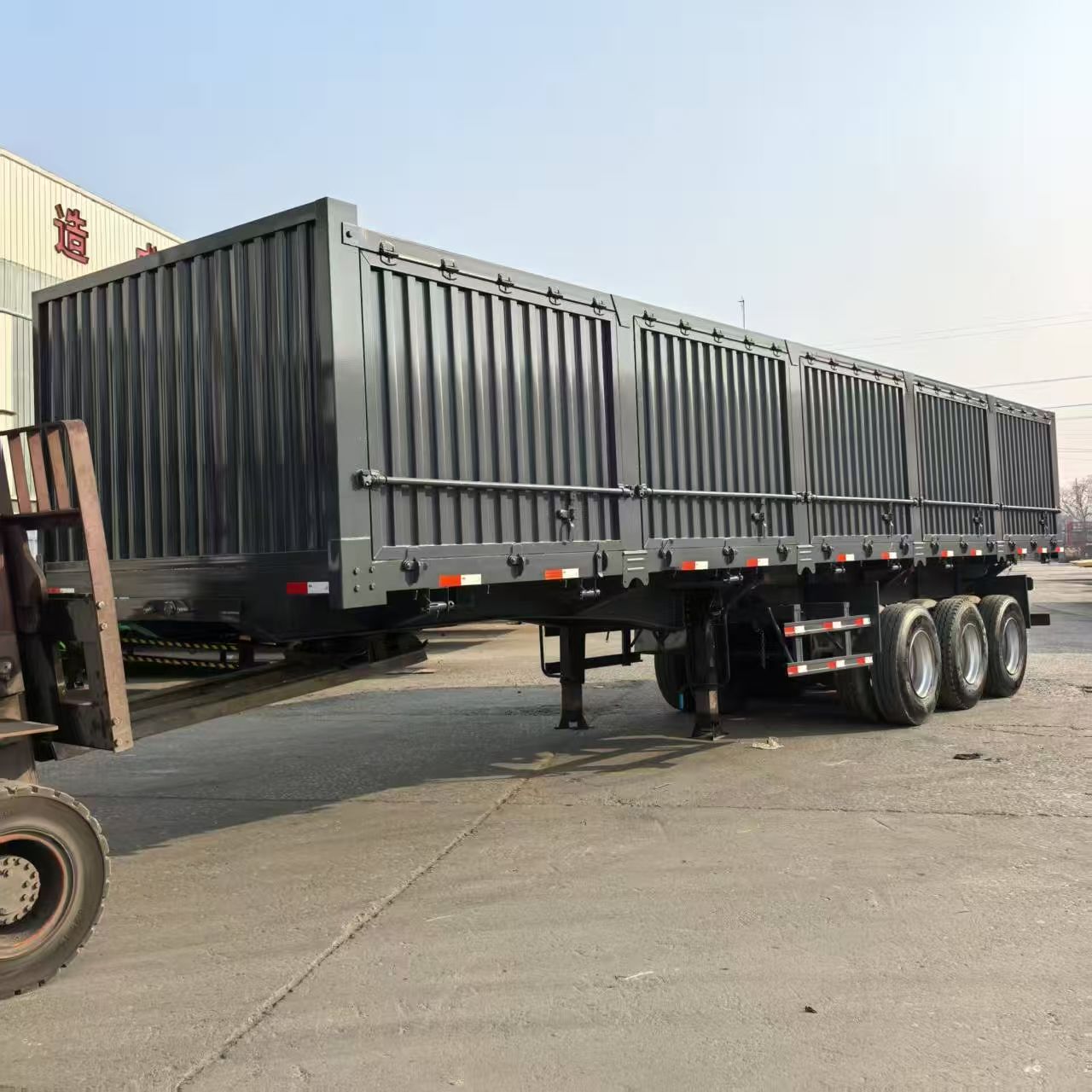

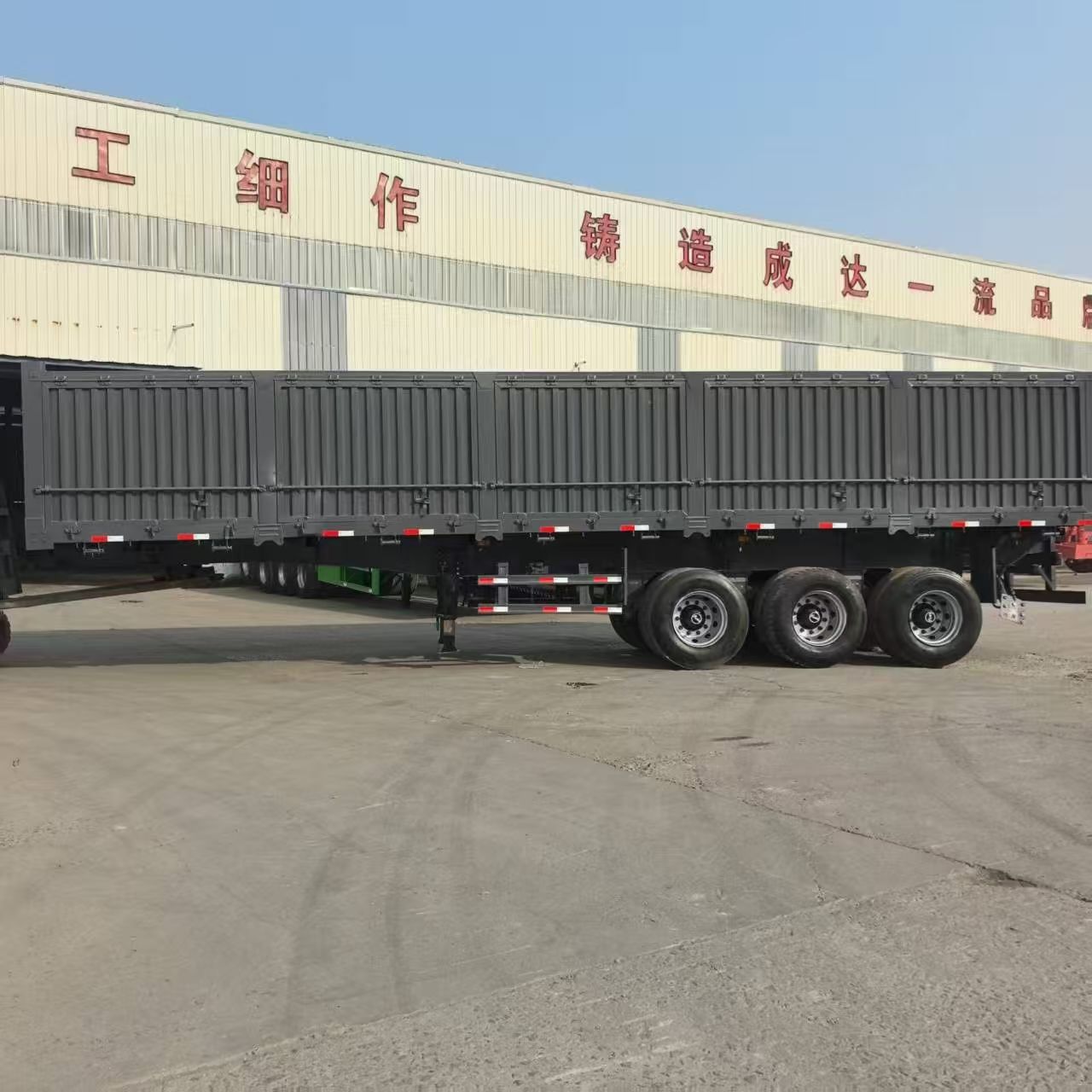

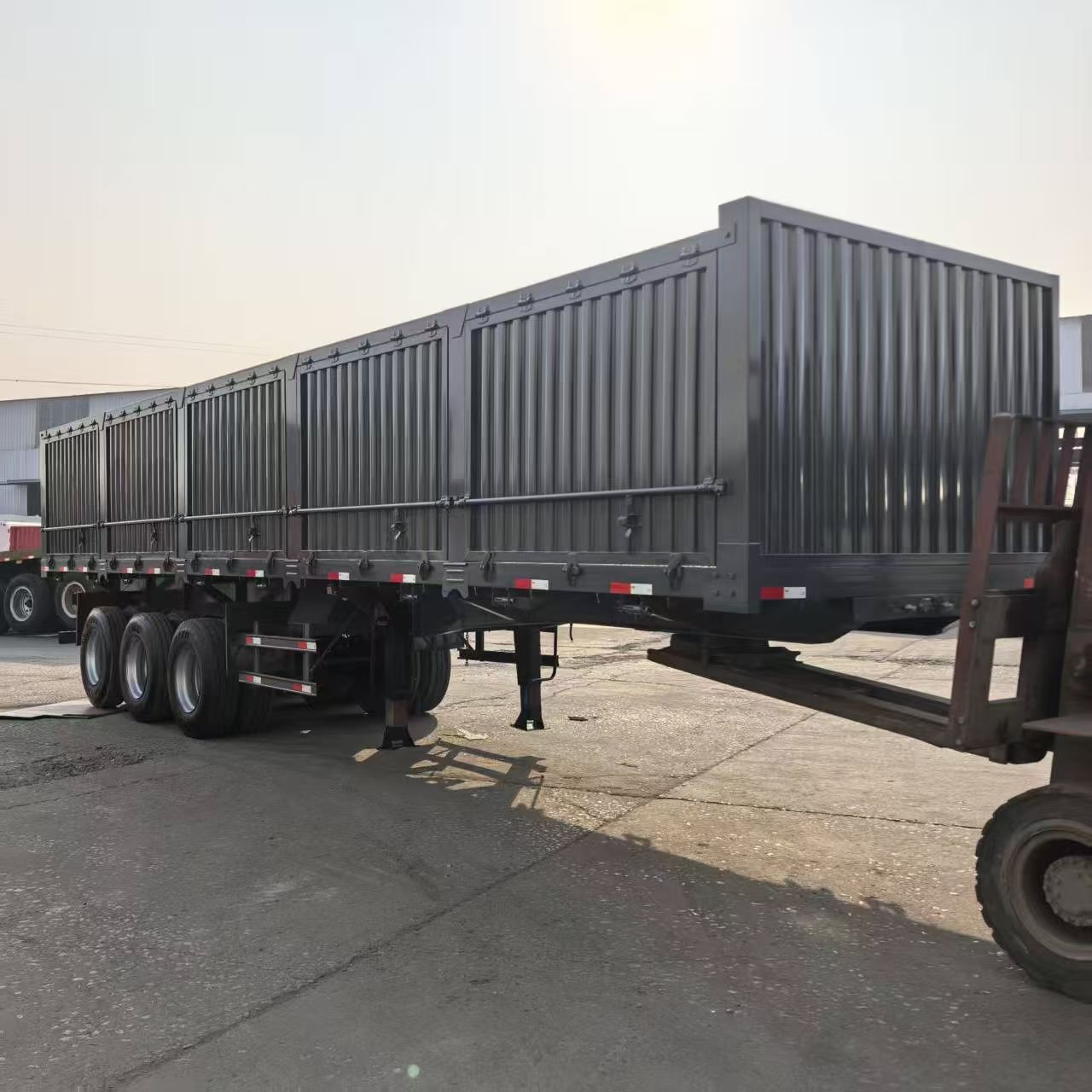

3 Axles 4 Axles 50-80 Tons Bulk Cargo Cattle Transport High Wall Fence Truck Semi Livestock Trailer

3 Axles 4 Axles 50-80 Tons Bulk Cargo Cattle Transport High Wall Fence Truck Semi Livestock Trailer
Introduction
+86 13373658661
+86 13373658661
info@zttruck.com
Contact Us

Products

Product Description

3fe566c4e6a11c90a7369d658f0e80dc

Highwall Fence Truck Semi Trailer

Model

ALP9350HWTST

Dimension(Optional)

Axle No.

Rated Load (kg)

Tire No.

Tire Size

20ft

2

40000

8

825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)

40ft 45ft 48ft 53ft

3

60000

12

40ft 45ft 48ft 53ft

4

75000

16

Wheel Base  (mm)

1310

leaf-spring Pcs

10

Axle

13/16/18 T

Suspension

Heavy Duty Mechanic Suspension with Leaf Springs

Main Beam Material

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system with automatic braking system/chambers

Brake Air Chamber

Double Model

Kingpin

2' or 3.5' Interchangeable

Landing gear

28T loading capacity with 80T static lifting capacity.

Platform

4-6 mm diamond steel plate

Brake System

Dual Lines Braking System With Automatic Air Chambers

Brake Air Chamber

Four double and two single chamber

Electrical System

24V, 7core socket, lights according to European standards.


Mainbeam Size

Upper plate

14mm

Lower plate

16mm

Mid Web

8 mm

Height

500-520mm

Tool Box

1 box of standard tools

Spare tire carrier

2 sets

Application

For animal/livestock/bulk cargo transport

Fence Height

300mm+2000mm

02c219739bc5301c6c77704037bc4bdc

386060d9057011bfb854e68af08bf701

bc159680ae30a116e1940b8ad4cded8f

461067acb22323055a5cc27a86e2e000

9c28d31e3c2ec525838d60d97df776fd

1fb6c8e09451b6643c1992fb6dafee1f

e5c8021c028342ea98a0e559fd632868

5aed60364ee5f465b125ba6fba9040f1

Wuxi Zitan Automobile Sales Co., Ltd. is a professional auto sales enterprise located in Wuxi, Jiangsu Province, a prime transportation hub in the Yangtze River Delta. With a registered capital of 5 million RMB, we mainly engage in the sales of new and used vehicles. We offer a full range of automotive products to meet diverse customer demands, focusing on overseas markets including Africa, Central Asia and Southeast Asia, while expanding our domestic market.
Upholding the principles of quality priority, customer orientation and integrity, we provide global clients with cost-effective, standard-compliant vehicles and full after-sales support. We have established a stable sales and service network in key markets and earned widespread trust, serving as a reliable partner in the global commercial and passenger vehicle industry.
We supply new and used vehicles of various well-known brands, covering heavy-duty trucks, special vehicles, commercial vehicles, passenger cars and pickup trucks. All products pass strict pre-sale inspections and performance tests to meet international and local market standards. We deliver tailored vehicle solutions for engineering, logistics, municipal services and personal travel scenarios to satisfy differentiated customer needs.
